x402 Integration Guide: Agent Billing for Your API

The x402 protocol, built by Coinbase, is an HTTP-native payment standard that lets AI agents pay for API calls using stablecoins. It strips out the need for accounts, API keys, or monthly invoicing entirely. The agent hits your endpoint, your server tells it the price, the agent pays in USDC, and the data comes back. The whole thing takes a couple of seconds.

Most x402 tutorials show you the happy path: agent pays, server responds, everyone is happy. Nobody talks about what happens when an agent's wallet runs dry mid-workflow, or when your facilitator goes down for 30 seconds during peak traffic. That is what this guide is actually about.

Since launch, x402 transactions have surpassed $600 million in volume, and Google, AWS, Stripe, and Anthropic have all integrated it. This is live infrastructure with real adoption, not just a theoretical whitepaper. If you run an API that serves data, computation, or any gated resource, you need a plan for how AI agents will pay you.

How x402 Works

The x402 protocol repurposes HTTP status code 402 ("Payment Required"), which has been sitting reserved in the HTTP spec since 1999 without a standard implementation. Coinbase finally gave it one.

The payment cycle looks like this:

Step 1: The AI agent makes a normal HTTP request to your protected endpoint. Nothing special on the first attempt -- it just calls you like any other API.

Step 2: Your server comes back with HTTP 402 and stuffs payment instructions into the response headers: the price, the wallet address, and which network to settle on (Base, Solana, or other supported chains).

Step 3: The agent signs a USDC transaction programmatically. Agents that support x402 already have wallet infrastructure baked in, so this does not require any human intervention.

Step 4: The agent retries the same request, but this time it includes a payment proof header with the transaction signature attached.

Step 5: Your server verifies the proof, confirms settlement, and returns the data. The USDC hits your wallet immediately -- no 30-day net terms, no invoice chasing.

The whole round trip typically finishes in under three seconds. You do not manage subscription tiers, you do not implement OAuth flows, and there is no end-of-month billing reconciliation. Each call is its own self-contained economic transaction, which is a fundamentally different model from how APIs have been monetized for the past two decades.

x402 vs ACP vs AP2

There are three agent payment protocols gaining traction right now, and frankly, the marketing around each one makes them all sound interchangeable. They are not.

For straightforward API monetization, x402 is the right starting point. If you have endpoints that return data or do computation and you want agents to pay per call, start here. ACP adds complexity you probably do not need yet -- subscription models, negotiated rates, usage tiers. It solves real problems, but those problems tend to show up after you already have meaningful agent traffic, not before. AP2 solves a different problem entirely: multi-agent orchestration where agents hire other agents to complete sub-tasks. Unless you are building an agent marketplace, you can ignore it for now.

You can always layer ACP or AP2 on top later as your agents start handling more complex workflows and you have enough usage data to justify richer billing models.

Architecture Decisions Before You Code

Dropping x402 middleware into your API stack takes a day. Designing a billing architecture that survives contact with real agent traffic takes longer. These are the decisions you should make before writing any code.

Pricing model

It is tempting to get clever with dynamic pricing based on compute cost per request. Sounds smart in theory. In practice, the price calculation can easily take longer than the actual API call. Flat rate per endpoint — always start there.

If you try to build dynamic pricing without caching your fee estimates, you will hammer your database on every single request. It is tempting to get clever early, but the smarter move is to set flat rates per endpoint and add tiers later when you have actual usage data telling you where the pricing gaps are.

• Flat rate: $0.01 per call. Predictable for both sides. Easy to implement. This is where you should start.
• Tiered by endpoint: /search costs $0.005, /analyze costs $0.10, /generate costs $0.50. Reflects actual resource consumption. Move here once you have traffic data.
• Dynamic: Price adjusts based on payload size, compute time, or demand. Save this for when you genuinely need it, because the engineering overhead is real.

Which endpoints to gate

A common mistake is gating everything on day one. Agents in testing environments typically do not carry wallets, so your traffic will drop off a cliff before you even get real usage data. Keep your sandbox endpoints free.

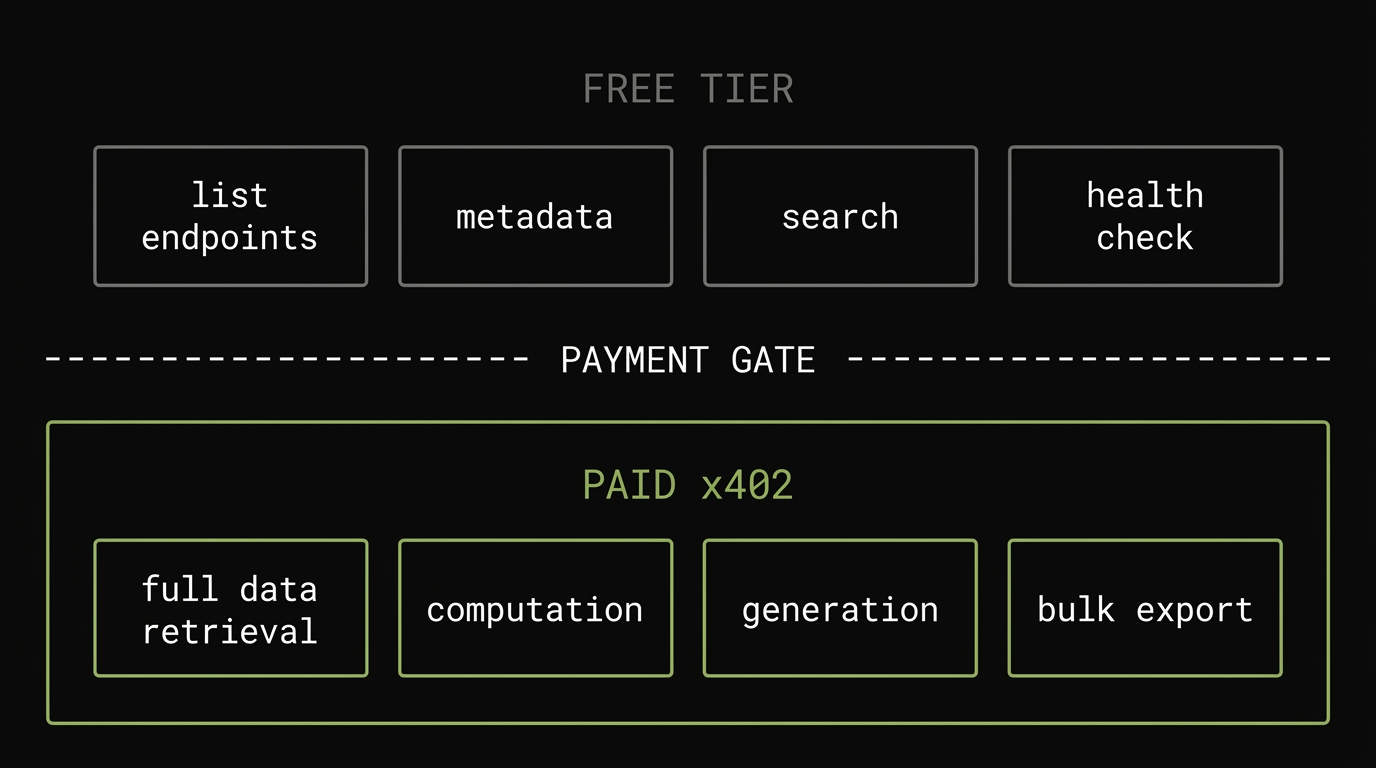

The pattern that works: offer a free discovery tier covering list endpoints, metadata, and lightweight queries, then gate the high-value operations like full data retrieval, computation, and generation. Let agents poke around and understand what you offer before they start spending money. Otherwise they just leave.

Budget caps for agents

An AI agent with a funded wallet and a loop can blow through thousands of dollars overnight. We have seen this happen. It is not a hypothetical risk; it is a Tuesday. Your x402 implementation needs server-side rate limits tied to wallet addresses, with spending thresholds within rolling time windows. Even though x402 is permissionless by design, nothing stops you from tracking spend per wallet and cutting off requests that exceed a sane limit.

Settlement and reconciliation

x402 settles instantly on-chain, which sounds beautifully simple until you need to reconcile revenue across 40 endpoints, figure out why a particular agent paid twice for the same call, or explain a gap in your settlement log caused by a three-second Base network hiccup. Build your settlement tracking from day one. Every team that treats this as an afterthought ends up rebuilding it later under pressure.

Fallback for non-x402 clients

Most of your traffic today is not coming from AI agents, and it will not be for a while. Your x402 layer has to coexist peacefully with traditional authentication. The pattern is straightforward: if a request carries a valid API key or OAuth token, serve it normally and skip the x402 layer completely. If it carries neither, respond with 402 and payment instructions. This way your existing integrations keep working and agents get a native payment path without you maintaining two separate API deployments.

Monitoring and analytics

You need to know what your agents are doing from the moment you flip the switch. Which agents are calling which endpoints, how much revenue each endpoint actually generates versus what you expected, what your error rates look like, and whether any particular agent is doing something weird like calling the same endpoint 10,000 times in a row. This data drives every pricing decision you make going forward.

Implementation Patterns

There are three solid patterns for wiring x402 into an existing API, and picking the wrong one will cost you a refactor later. The choice comes down to how much of your stack you control and how much agent traffic you are expecting.

Pattern 1: Middleware

This is the most common approach and the one we recommend when you own the full API stack. You slot x402 in as middleware so every request passes through it. The middleware checks for payment proof, verifies it if present, or returns 402 with instructions if not. Clean, simple, and keeps the payment logic out of your business logic.

Pattern 2: Gateway

Deploy an x402 payment gateway as a reverse proxy sitting in front of your API. All the payment logic lives in the gateway; your actual API never knows the difference. This is the right pattern when you cannot modify the upstream service -- think third-party APIs, legacy systems, or microservices owned by another team that is not going to rewrite anything for you.

Pattern 3: Hybrid

Sometimes you need finer control than a blanket middleware or gateway can give you. Some endpoints are free, some are gated, and the gating logic depends on more than just the URL path. In this pattern, each route explicitly declares whether it is free or paid and at what price. You get precise control at the cost of more configuration to manage, so this is best suited for APIs with genuinely varied endpoint economics.

Whichever pattern you go with, there are three things your x402 layer absolutely must handle well: payment verification (confirming the transaction is valid and actually settled -- not just submitted), idempotency (rejecting reused payment proofs so the same transaction cannot buy two responses), and logging (recording every transaction for reconciliation, analytics, and the inevitable debugging session at 2am).

Common Mistakes

We have built and reviewed enough x402 implementations at this point to know the failure patterns by heart. Here are the ones that keep showing up.

Gating everything. We covered this above, but it bears repeating because almost everyone makes this mistake first. If an agent cannot even discover what your API offers without paying, it moves on to a competitor that lets it browse. Free discovery endpoints are not charity -- they are your top-of-funnel. Let agents read your schema, hit your docs endpoint, and run lightweight queries before asking for money.

No budget caps. An agent stuck in a retry loop with a well-funded wallet can rack up thousands of dollars in minutes. We have seen it happen with a data enrichment API where an agent kept retrying a malformed request and paying each time because the 402 response came before the input validation. Your server needs per-wallet spending limits within rolling time windows. This protects the agent operator, your infrastructure, and honestly your reputation.

No monitoring. Going live without agent behavior analytics is like deploying to production without logging -- technically possible, practically reckless. You will not know which endpoints are underpriced, which agents are churning after one call, or whether your payment verification has that one edge case where a Base network timeout causes a silent failure. Instrument everything before you launch.

Ignoring non-agent clients. Your existing users are still authenticating with API keys and OAuth tokens. If your shiny new x402 layer accidentally intercepts an authenticated request and demands payment from a customer who is already paying you $500 a month, you will have an angry support ticket within the hour. Always check for traditional auth credentials first, x402 second.

Not testing with real agents. Curling your own endpoints with fabricated payment headers is not the same as having Claude, GPT, or Gemini actually call them with real wallets. Agent behavior in the wild is surprising -- some retry aggressively on any non-200, some batch dozens of requests before processing any responses, some will try to negotiate price even though x402 does not support negotiation. Test with the actual agents your users are running.

Getting Started

If you want to add x402 billing to your API, here is a practical sequence. It is not complicated, but the order matters.

1. Audit your endpoints. Figure out which ones deliver enough value that an agent should pay for them. Map the compute cost per call, but also think about the data value -- sometimes a cheap-to-serve endpoint is your most valuable one.
2. Set your pricing. Start with flat rates per endpoint, priced slightly below what the equivalent human-facing API tier would cost. Resist the urge to build a dynamic pricing engine on day one. You can adjust once you have real usage data showing where your pricing is off.
3. Choose your pattern. Middleware if you own the stack. Gateway if you do not. Hybrid if you genuinely need per-route control and are willing to maintain the configuration.
4. Implement with monitoring. Ship the analytics layer at the same time as the payment layer, not after. Revenue per endpoint, transactions per agent wallet, error rates, settlement confirmation times -- you need all of it from day one.
5. Test with real agents. Not just integration tests with mocked payments. Get actual AI agents to call your gated endpoints, pay with real USDC, and consume the data. The edge cases that only surface in real agent workflows will surprise you.
6. Launch with budget caps. Set conservative per-wallet spending limits to protect early adopters from accidental overspending. You can always raise the limits later once you have confidence in your safeguards.
